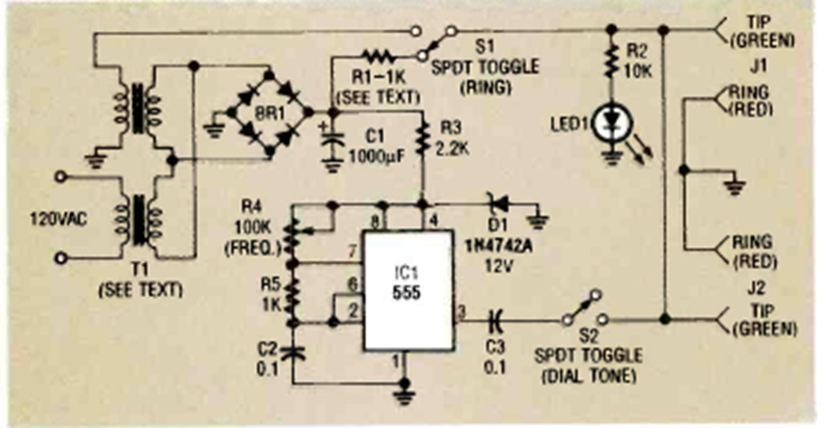

Telephone Line Simulator (CB25592E)

This circuit was found in the August 1993 Electronics Now magazine. It is for telephones used on common old-style analog lines.
