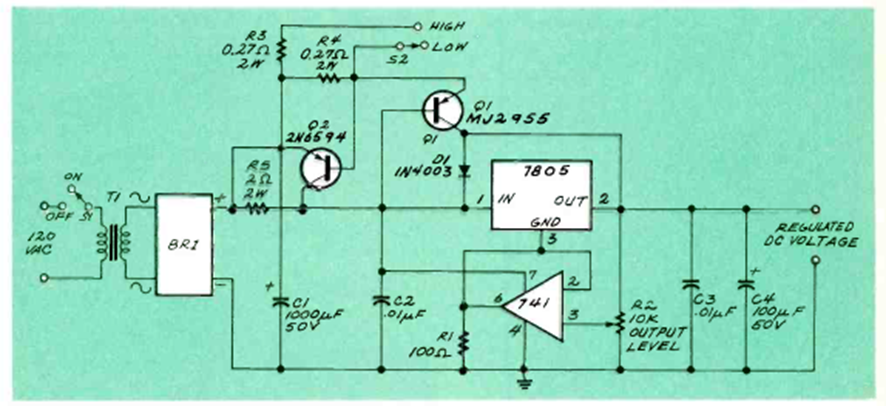

Regulated Power Supply (CB25641E)

This power supply was found in the December 1993 issue of Electronics Now magazine. Power components must be provided with heat sinks.

| Clique na imagem para ampliar |
