Zero crossing with the CA3059 (CB25872E)

Details
Written by: Newton C. Braga

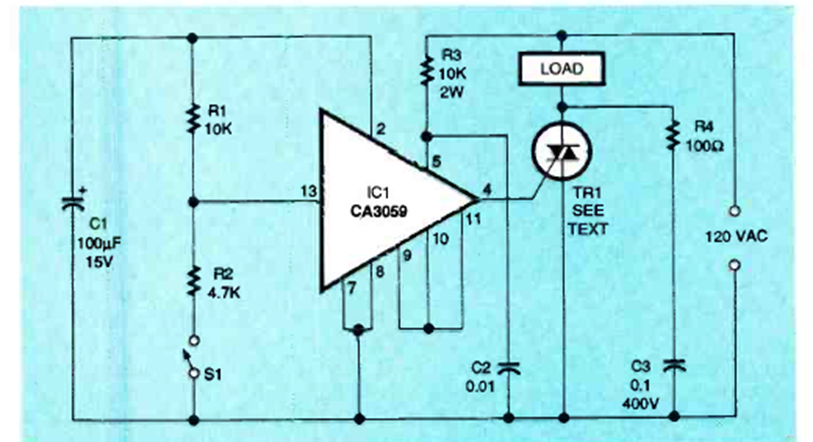

This circuit is an alternative version of the previous one also found in the July 1995 Electronics Now magazine. The triac must be equipped with a heat sink.
