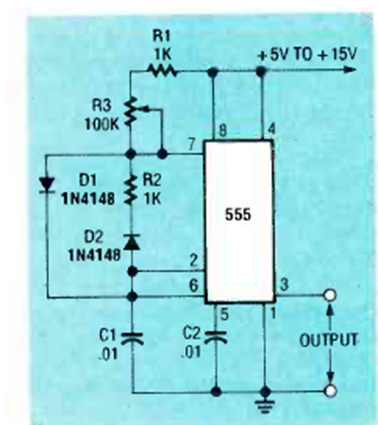

555 Oscillator with Variable Duty Cycle (CB25511E)
- Details
- Written by: Newton C. Braga
We found this circuit in the October 1992 issue of Radio Electronics magazine. The duty cycle can range from 0 to 99%. The frequency is given by C1.
