555 Voltage Quadrupler (CB25545E)

Details
Written by: Newton C. Braga



This circuit was found in the December 1992 issue of Radio Electronics magazine. The current is a few mA and the maximum input voltage is around 12 V.

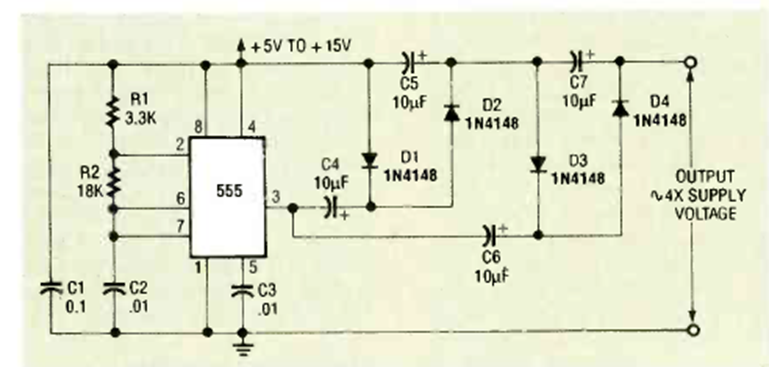

| Clique na imagem para ampliar |
