Cascading the 4017 (CB25913E)

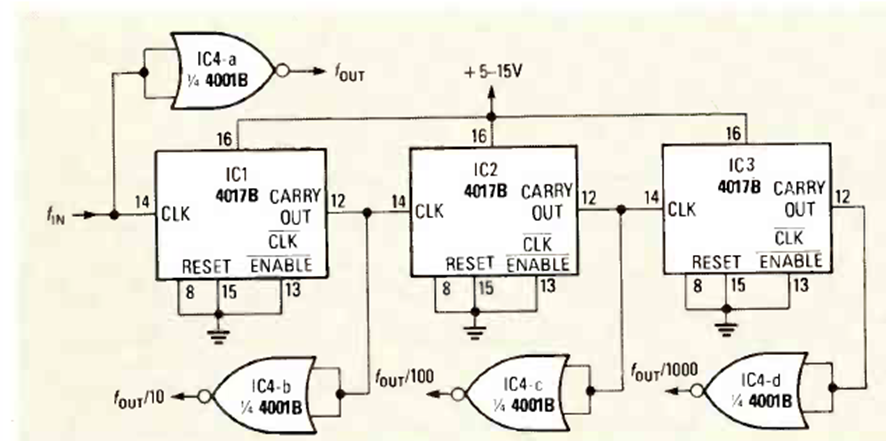

With this circuit any number of 4017 integrated circuits can be connected in series. The circuit is from a Radio Electronics from April 1989.

| Clique na imagem para ampliar |
