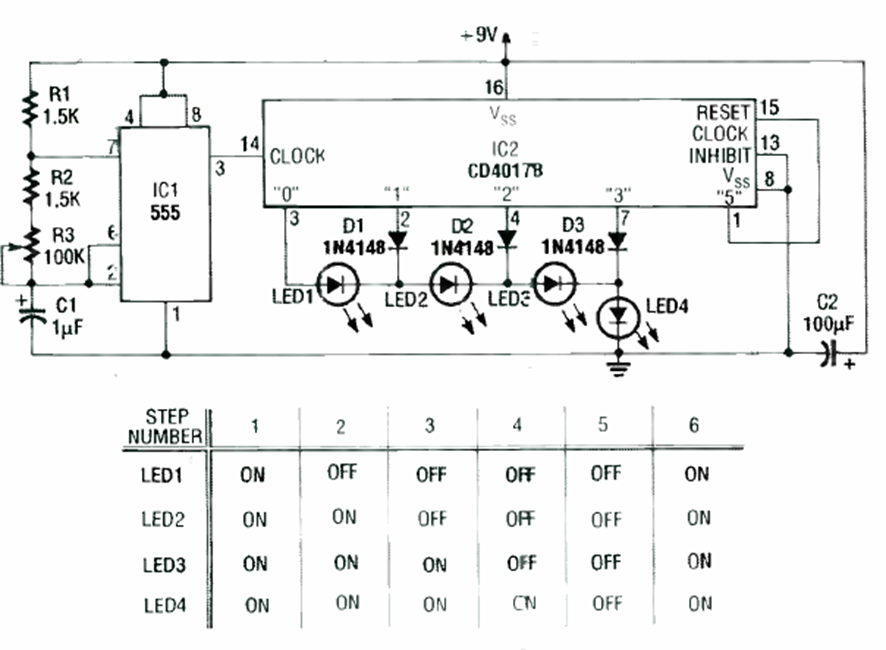

This circuit has the effects indicated in the table next to the diagram. We found it in the Radio Electronics magazine of February 1992. The circuit has its speed dependent on C1 and adjusted by R3.
| Clique na imagem para ampliar |
5-step sequential circuit with 4 LEDs 4017 (CB25435E)
- Details
- Written by: Newton C. Braga
