741 3-Band Tone Control (CB25839E)

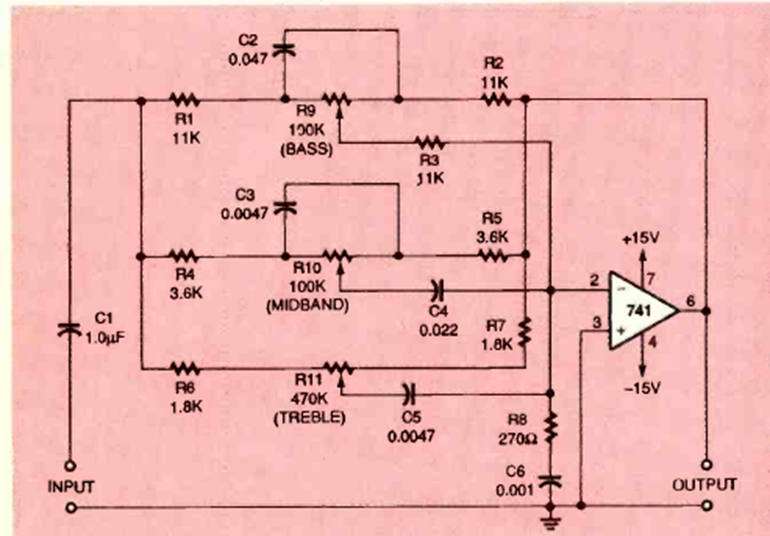

This control for bass, midrange, and treble was found in the March 1995 issue of Electronics Now magazine. The circuit requires a dual power supply.
