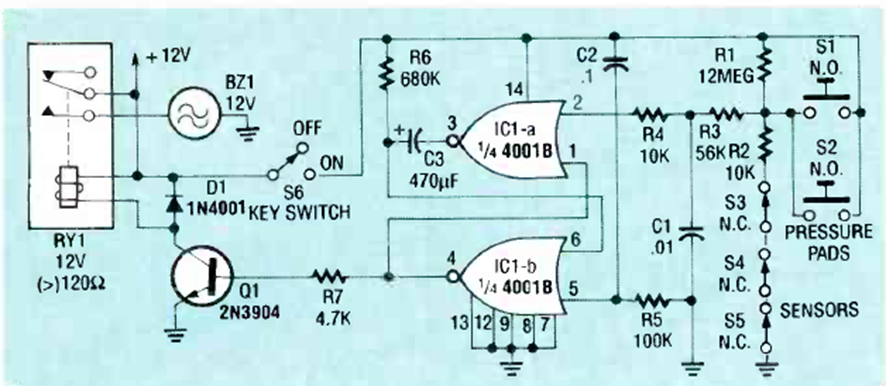

CMOS Auto-Off Alarm (CB25949E)

Details
Written by: Newton C. Braga



This circuit was found in the May 1990 Radio Electronics magazine. The timings depend on the capacitors and the supply voltage depends on the relay used.
