Shortwave Receiver (CB25367E)

Details
Written by: Newton C. Braga

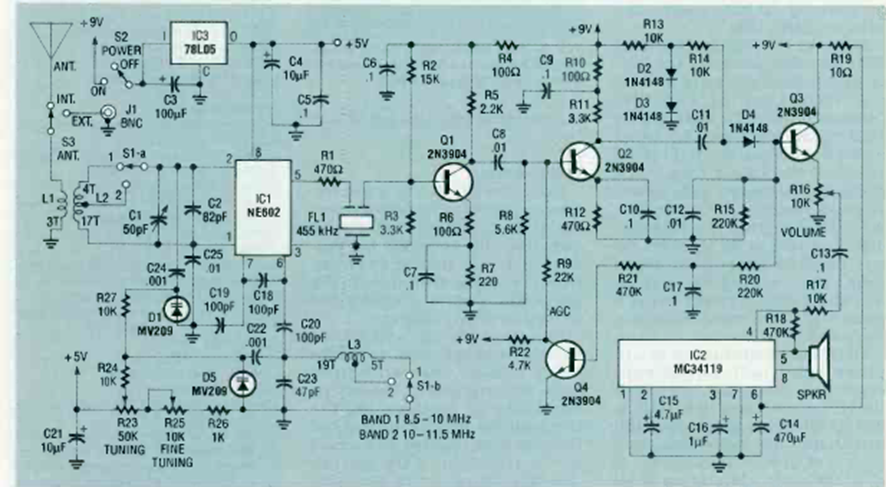

This circuit was found in the January 1991 issue of Radio Electronics magazine. The circuit uses integrated circuits of the time and the coils depend on the tuned bands.
