Injector and Signal Follower (CB25717E)

Details
Written by: Newton C. Braga

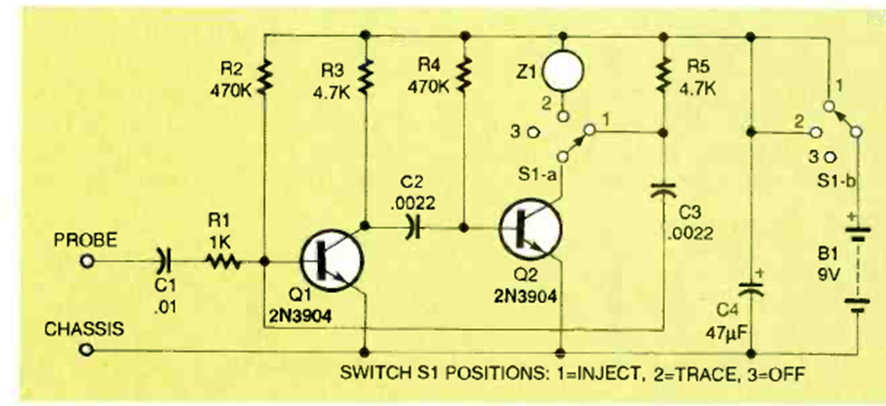

This circuit works as both an injector and a signal follower. We found it in the May 1994 issue of Electronics Now. The Z1 headphone must be high impedance.
