Flashing mobile bar with 4017 (CB25434E)

Details
Written by: Newton C. Braga

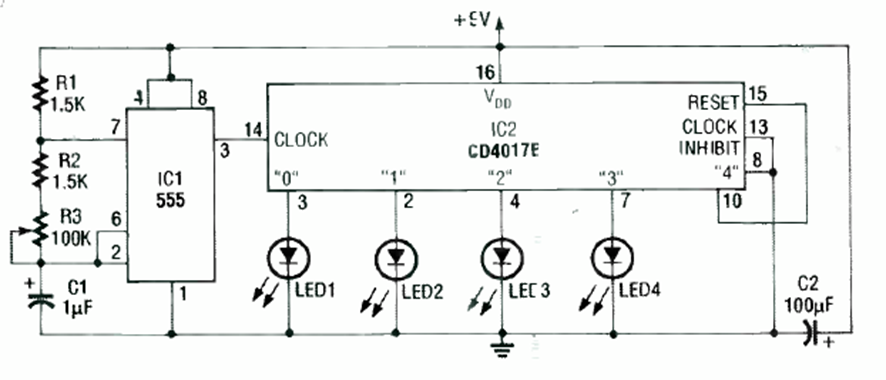

This circuit was obtained from the February 1992 Radio Electronics magazine. In it, a bar of 4 LEDs flashes continuously at a speed given by C1 and the setting of R3.
