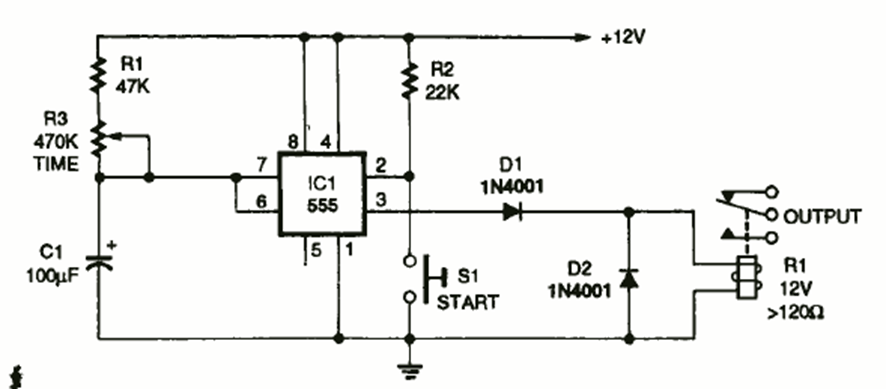

Simple 6 to 60 second timer 555 (CB25863E)

Details
Written by: Newton C. Braga



This circuit was found in the June 1995 Electroics Now magazine. The relay should be a sensitive type with up to 100 mA trigger current.
