Peak Recorder (CB25371E)

Details
Written by: Newton C. Braga

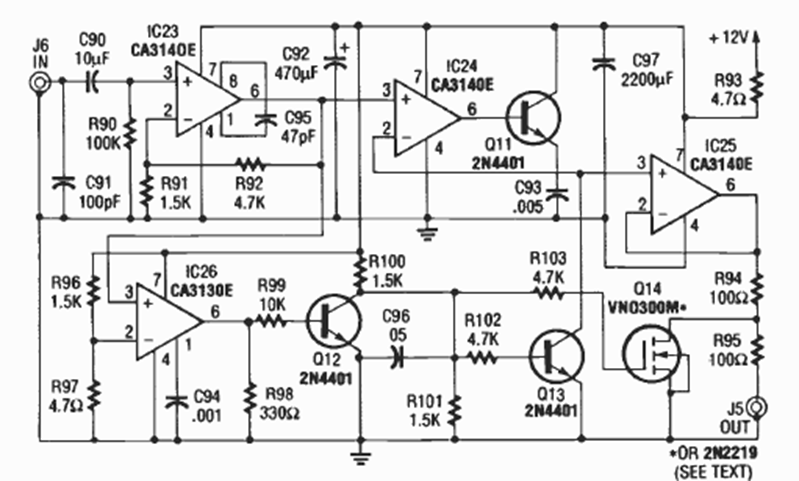

This circuit is part of an oscilloscope project with the PC. Its purpose is to record a peak in a signal that is to be displayed. We found it in the Radio Electronics magazine of February 1990.




| Clique na imagem para ampliar |
