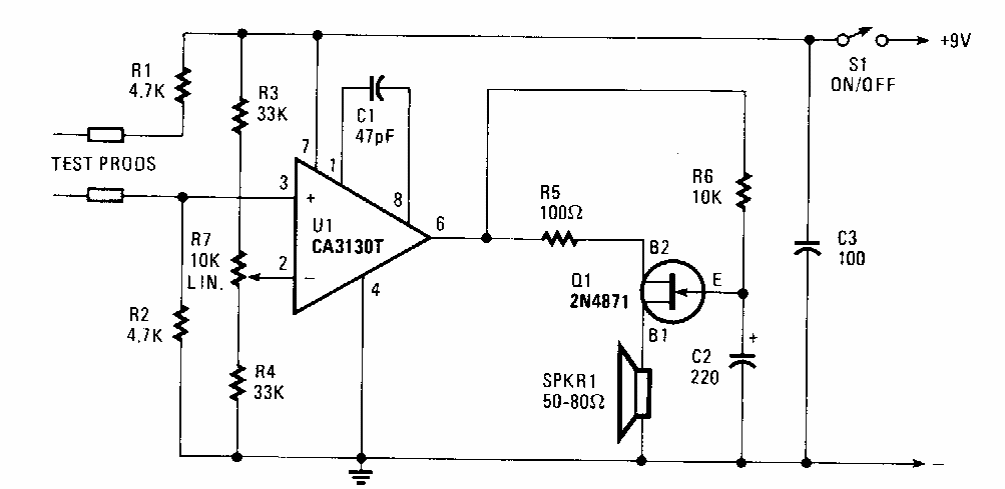

Continuity tester (CB7386E)

Details
Written by: Newton C. Braga



     This circuit was found in a Hands-On Electronics from the 90's. The FET can be any general purpose.
