Amplifier with the TAA370 (CB6277E)

Details
Written by: Newton C. Braga

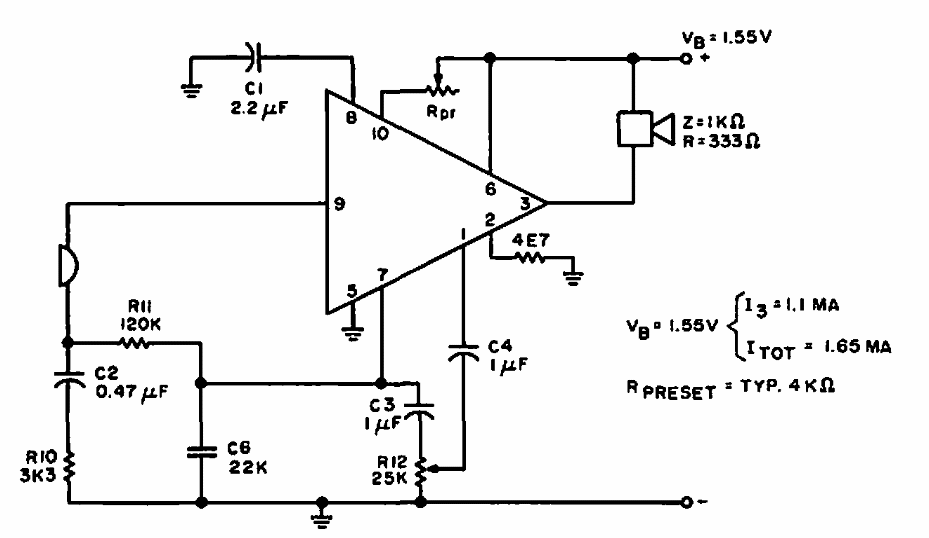

     This amplifier for hearing aid was found in a 1968 documentation using an integrated of the time. The power is from a battery, the consumption of 1.65 mA and the power of about to 1 mW.




| Clique na imagem para ampliar |
