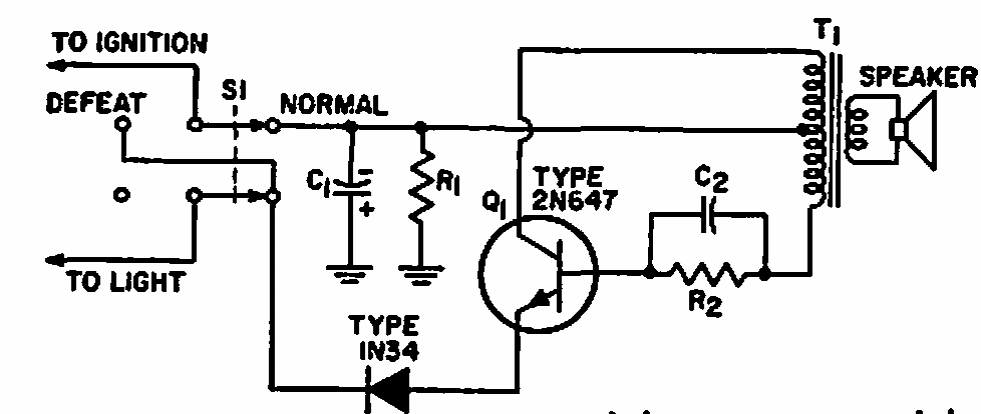

Positive ground headlight alarm (CB6374E)

Found in a 70s RCA transistor manual, this circuit is recommended for mass-positive cars of the era. The transistor is for general use.

| Clique na imagem para ampliar |
