Electronic dice (CB7006E)

Details
Written by: Newton C. Braga



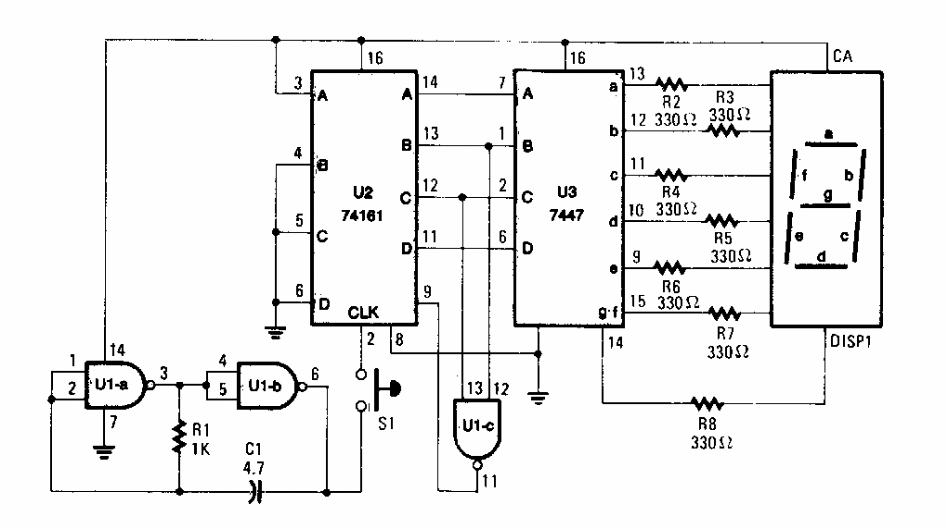

    Found in an old Popular Electronics this circuit appears in other variations on this site and in this section. It uses a 7-segment common anode LED display as an indicator.
