Precise multiplier amplifier (CB7058E)

Details
Written by: Newton C. Braga

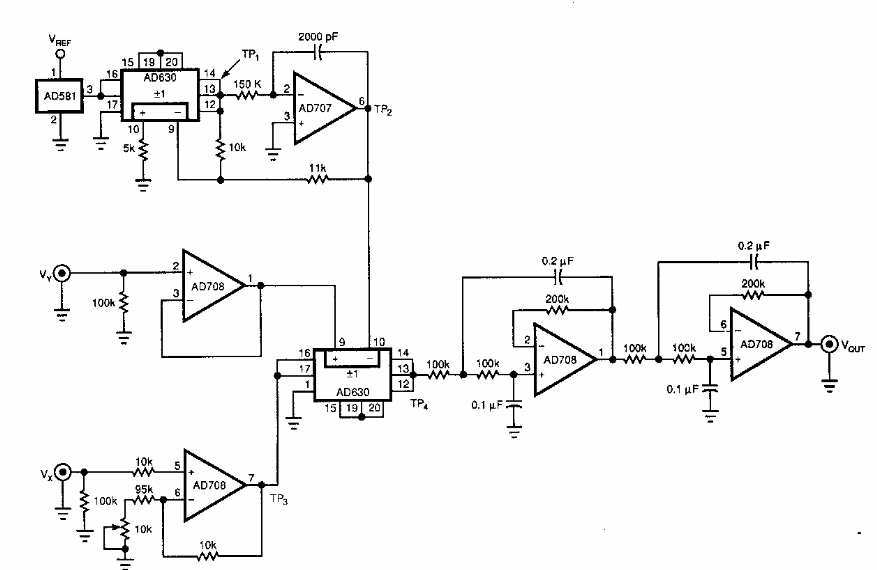

    Found in an EDN from the 90s, this circuit makes use of integrated circuits of the time, some of which are uncommon today. The output is given by:








Where:











| Clique na imagem para ampliar |
