Light Comparator (CB6502E)

Details
Written by: Newton C. Braga

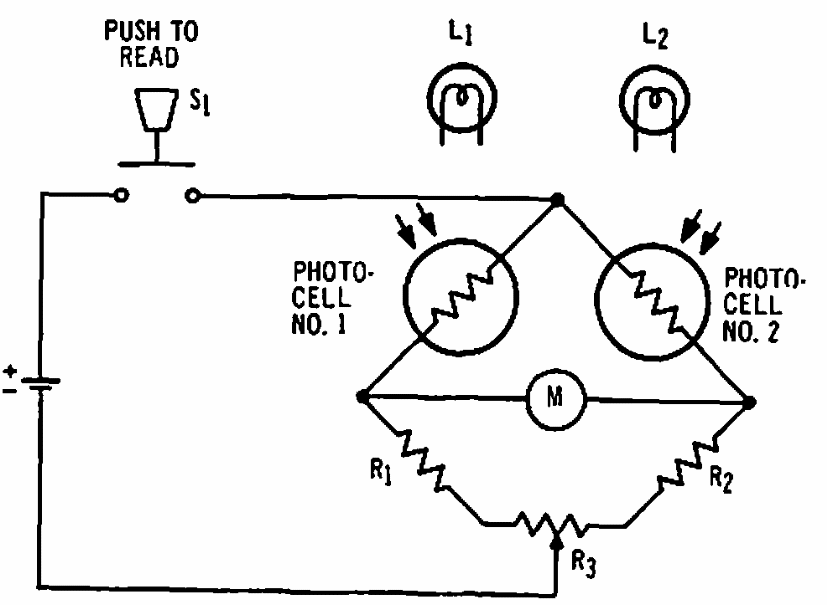

    This circuit was found in RCA documentation from the 1980s. The circuit uses LDRs of the time and the 50 uA instrument has zero in the center. R1 and R2 may have 2k2 and R3 10k typically.




| Clique na imagem para ampliar |
