Noise suppressor for triacs (CB6740E)

Details
Written by: Newton C. Braga

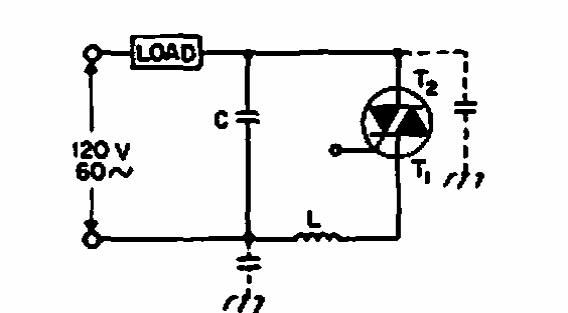

     A 100 nF capacitor and 100 uH inductor form this circuit suggested by General Electric in a 1964 publication. The thickness of the inductor wire is determined by the controlled charge current.
