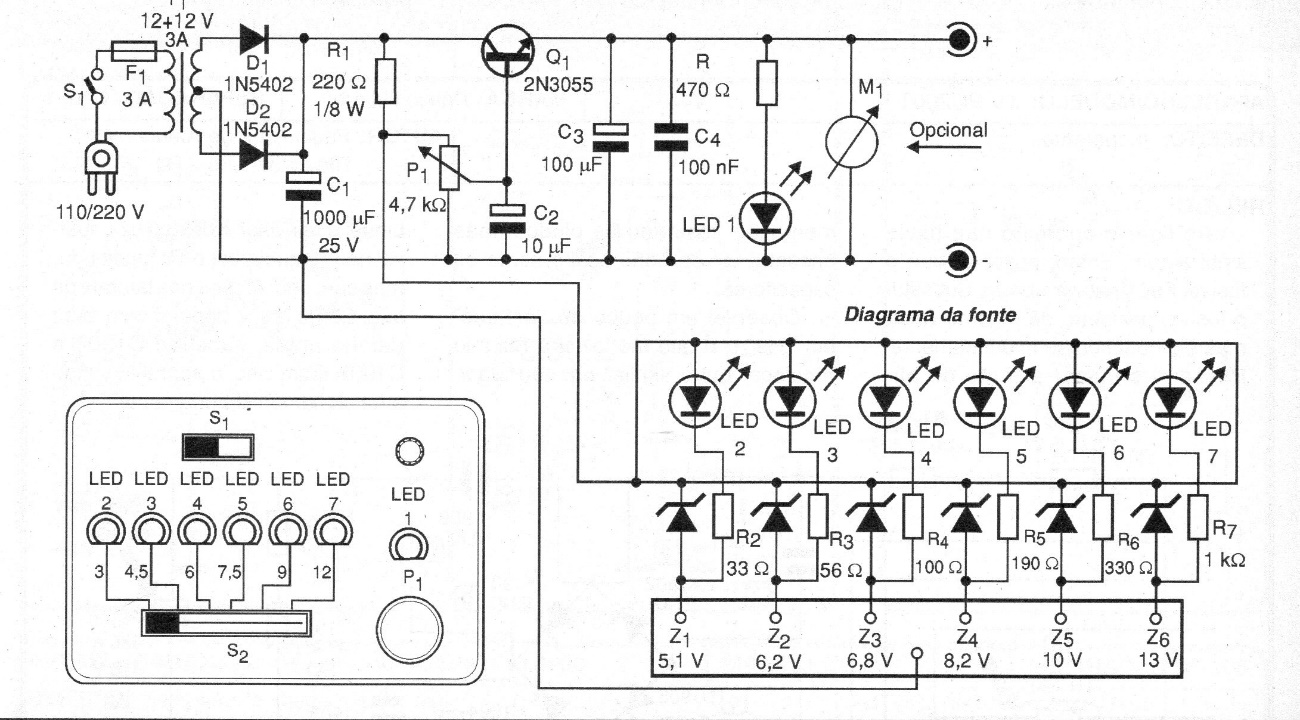

This common power source has only as a differential the selection of the voltage ranges by the zener that are switched. The circuit is from 2004 documentation and the power transistor must be mounted on a good heat sink. This source has no protection against short circuits at the output.
| Clique na imagem para ampliar |
