Flashing light (CB6948E)

Details
Written by: Newton C. Braga

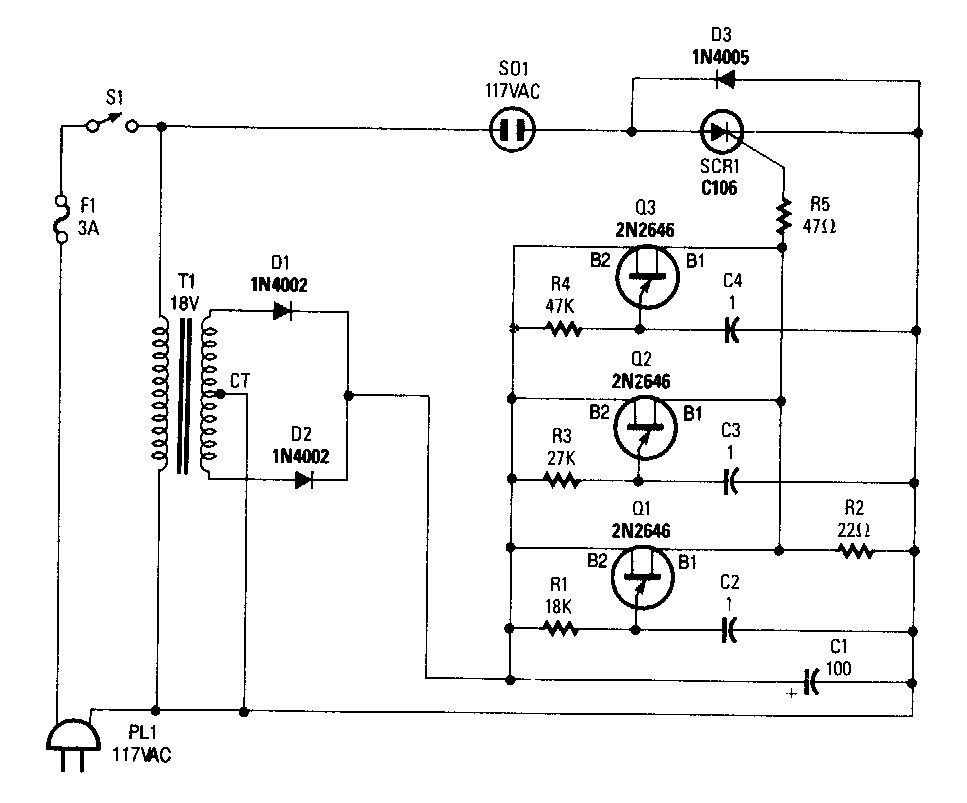

      This circuit makes an incandescent lamp blink in order to vary its brightness with a candle effect. The circuit is from an old Popular Electronics, but the components used are current.




| Clique na imagem para ampliar |
