DC speed control (CB7149E)

Details
Written by: Newton C. Braga

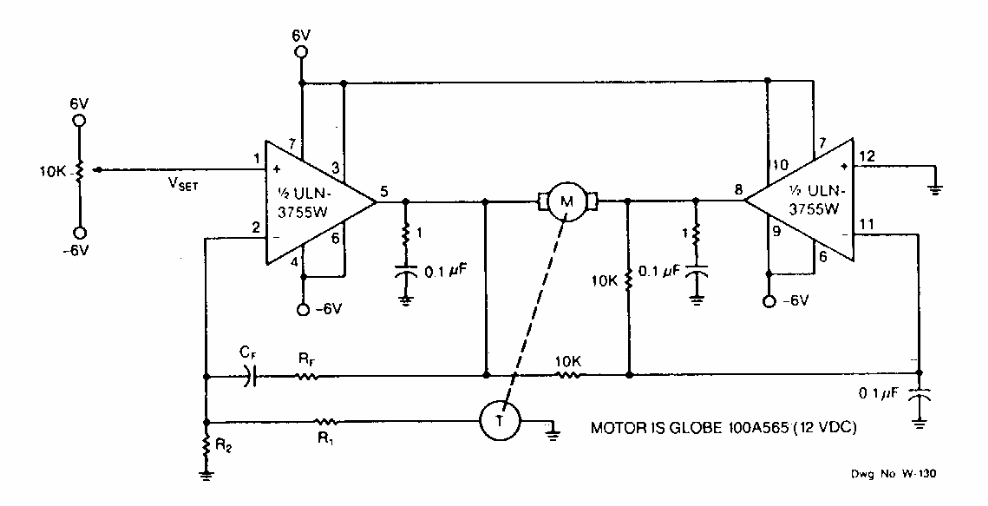

     This circuit was suggested by Sprague Electric in an 80's documentation. The circuit uses a tachometric sensor for feedback. The current was not indicated in the original documentation.
