Touch Switch (CB6447E)

Details
Written by: Newton C. Braga

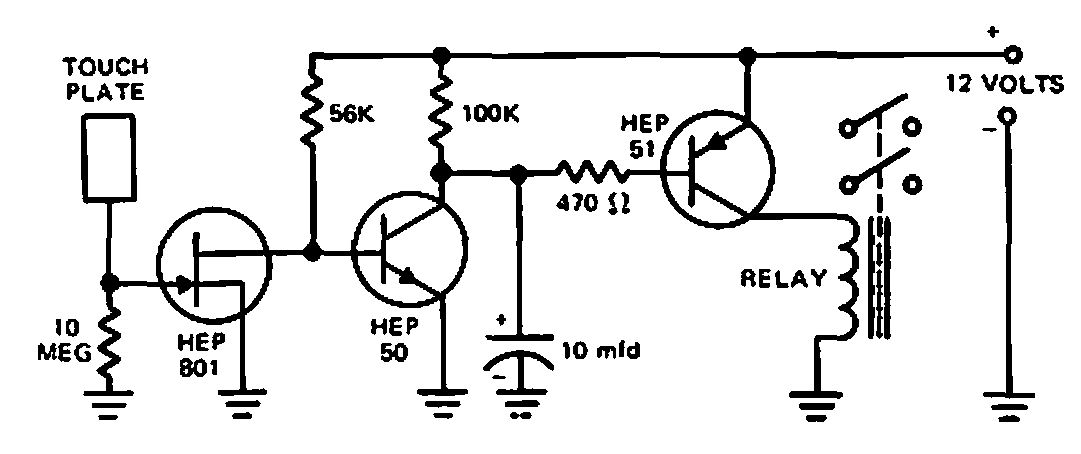

     This circuit was suggested by Motorola in a 1969 publication. It makes use of components of the time, but both the FET and the bipolar may be general purpose current types.
