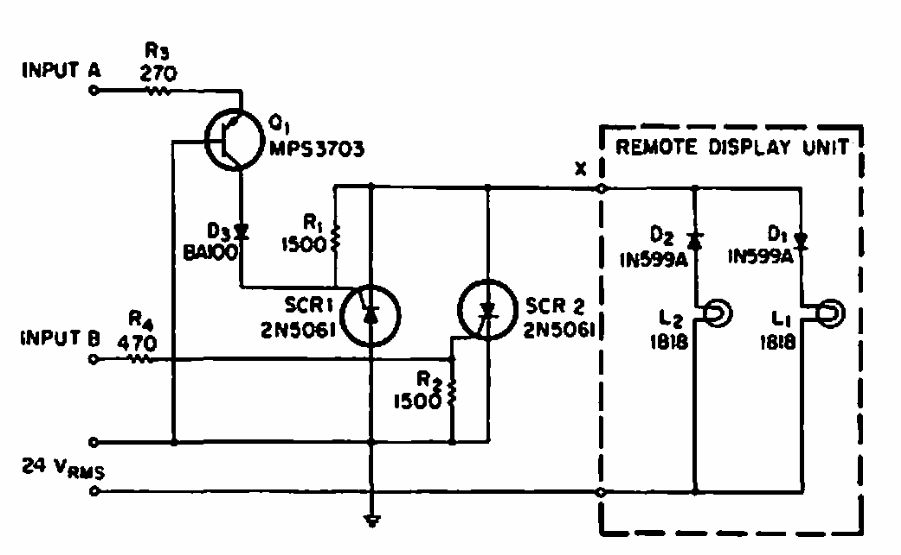

Found in a 1969 documentation this circuit shows how it uses SCRs and transistors to selectively drive two remote lamps. We have equivalent circuits in this section using alternating current and diodes.
| Clique na imagem para ampliar |
Remote Lamp Driver (CB6695E)
- Details
- Written by: Newton C. Braga
