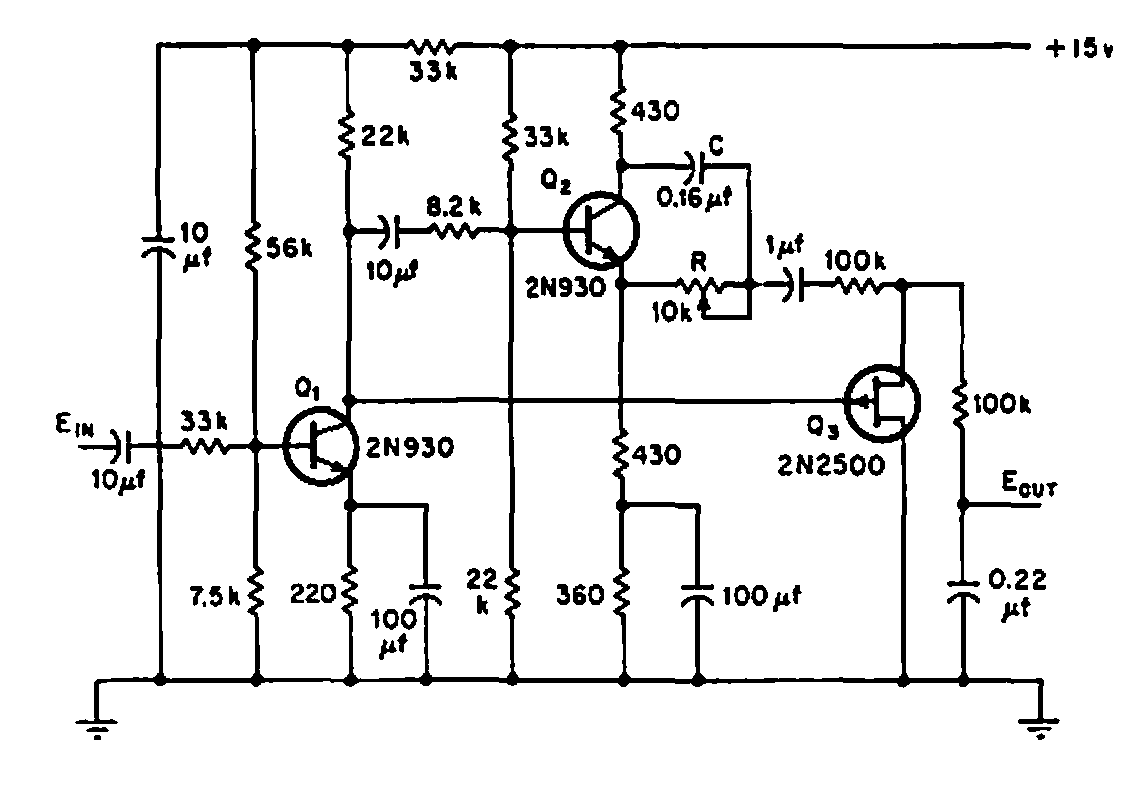

Frequency to voltage converter (CB6907E)

Details
Written by: Newton C. Braga



       This circuit is suggested by American documentation from 1970. It makes use of transistors of the time but can be implemented with modern equivalent transistors.




| Clique na imagem para ampliar |
