Ring counter (CB6605E)

Details
Written by: Newton C. Braga

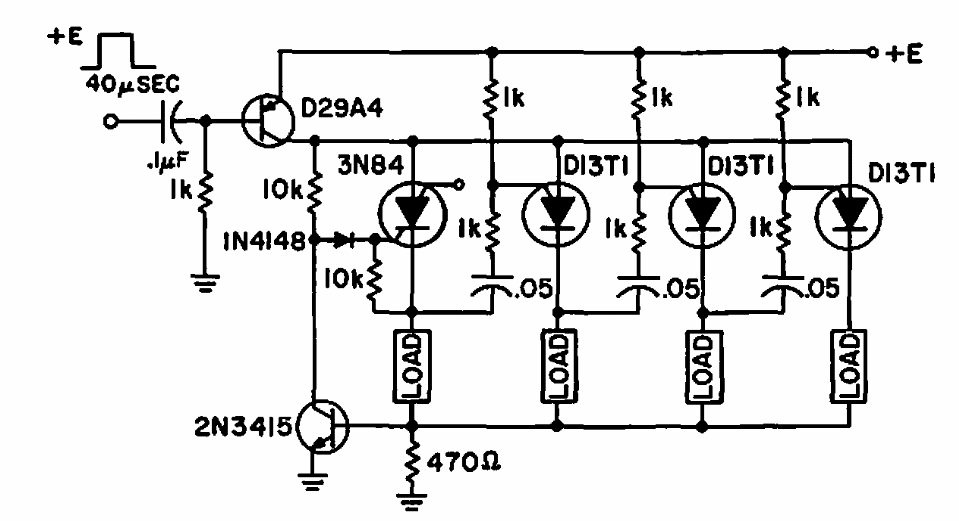

     Suggested by General Electric in a 1967 publication, this circuit uses the D13T1, an uncommon SCR today. This component is triggered by the anode.
