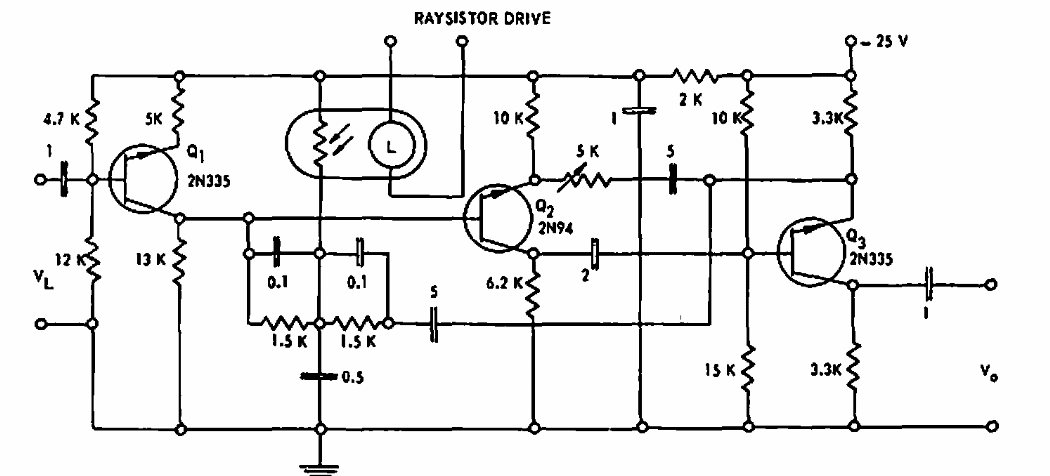

This 1967 Raytheon circuit uses an optical coupler of the era and has a range of 800 to 200 Hz. The components of the double T determine the frequency. Be careful that the connection of this filter is wrong with the central connection not existing.
