15 kHz inverter from 60 Hz (CB7296E)

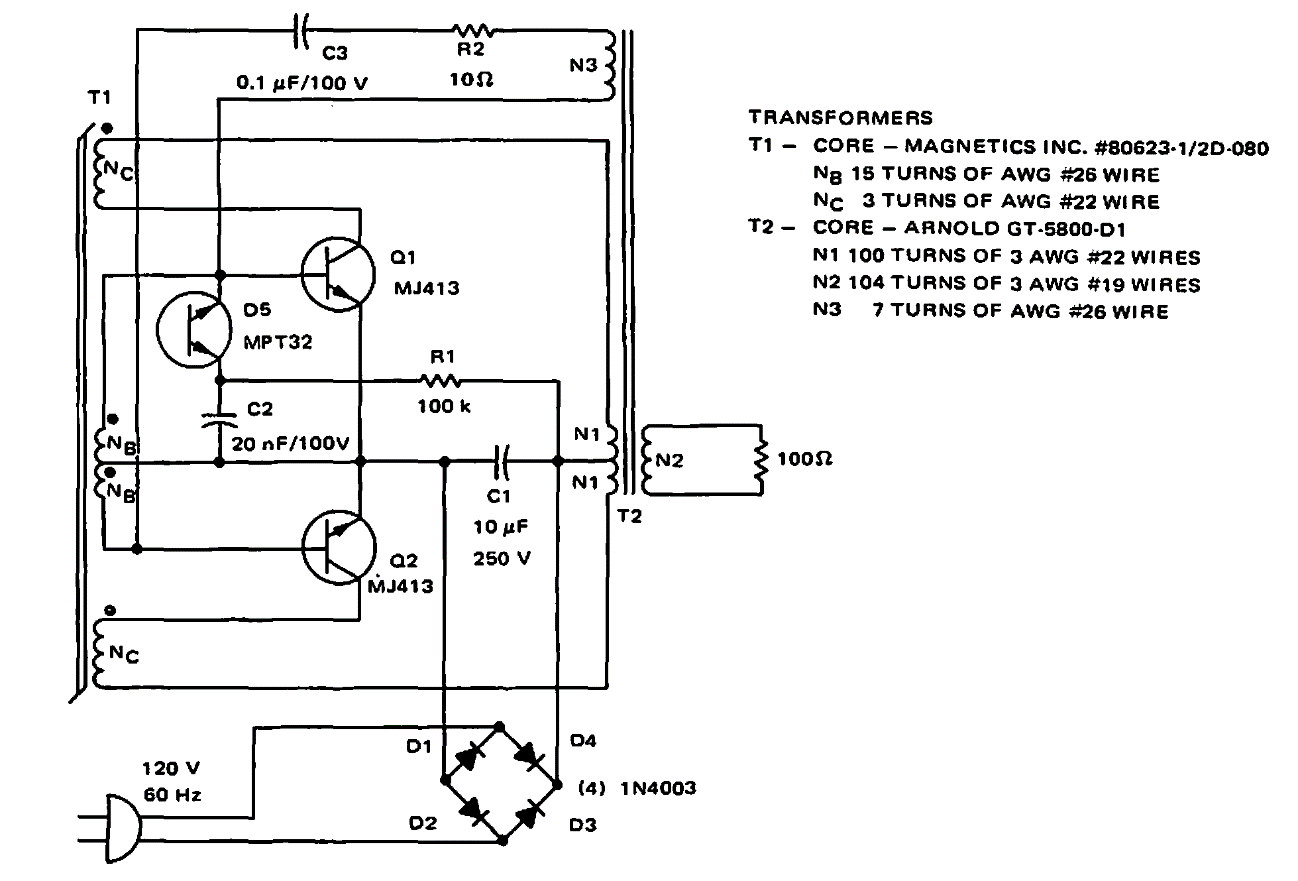

This circuit was found in a Motorola manual from 1968. As it can be obtained 20 V at 15 kHz from 120 V x 60 Hz. The components are of the time.
