3-stage divider (CB6827E)

Details
Written by: Newton C. Braga

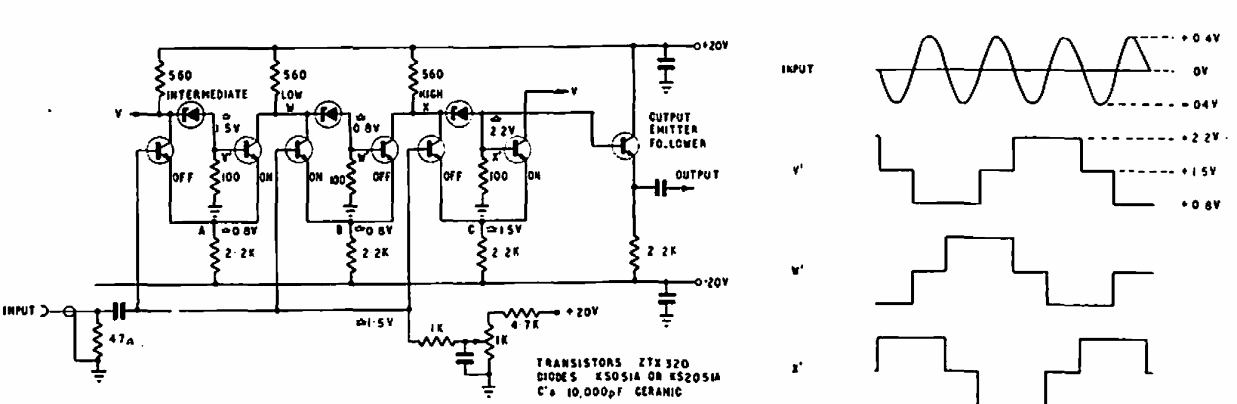

    We found this circuit in an English publication from 1969. The circuit uses transistors from the time and can operate at frequencies up to 300 MHz. Observe the waveforms of the obtained signal.




| Clique na imagem para ampliar |
