Selectable gain amplifier (CB7127E)

Details
Written by: Newton C. Braga

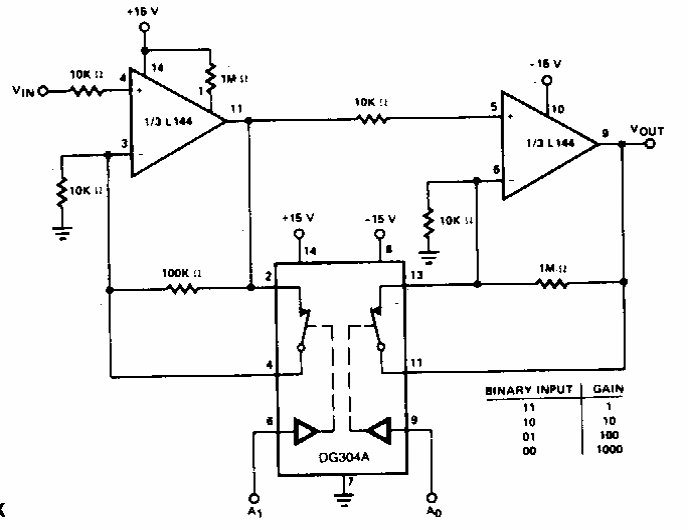

     Suggested by Siliconix in documentation from the 90s, this circuit can present gains of digitally selected by the input going from 1 to 1000. The circuit can be adapted to work as a shield.




| Clique na imagem para ampliar |
