High Output Voltage Amplifier (CB6179E)

Details
Written by: Newton C. Braga

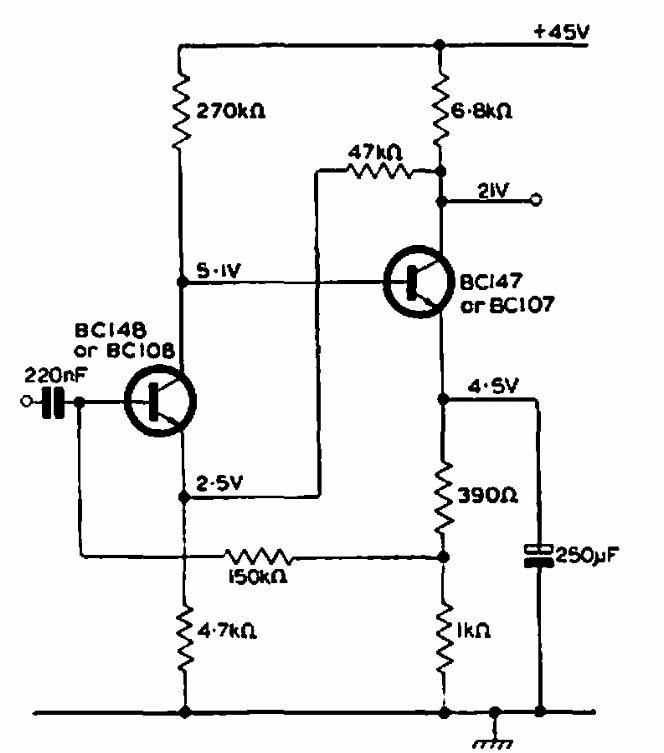

     This circuit is from Mullard 1969 documentation. The circuit operates at a relatively high supply voltage and has a 10 Vpp output. The transistors are of the time, but admit equivalents.
