Digital to Analog Converter (CB6673E)

Details
Written by: Newton C. Braga

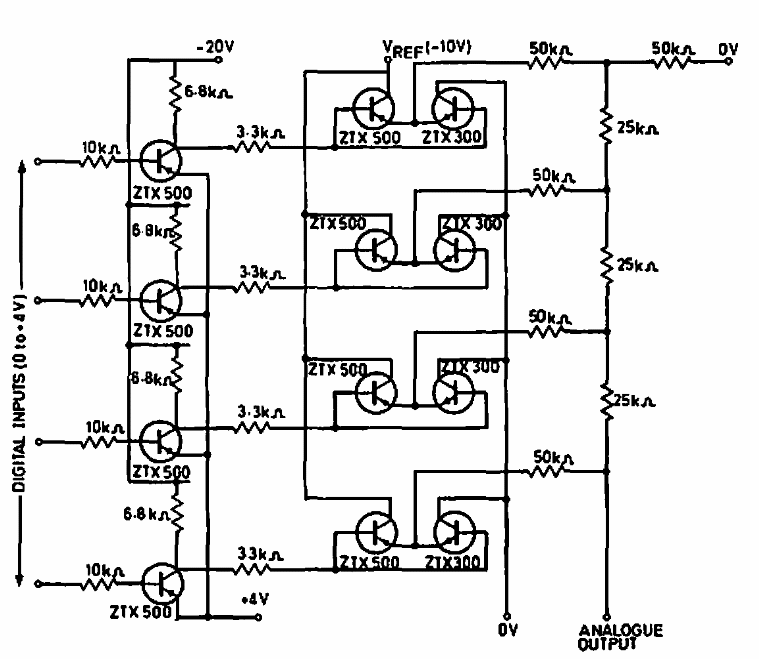

     This circuit using only transistors was obtained from Ferranti's 1969 documentation. It can be made from modern transistors. The circuit is 4 bits.
