Differential amplifier (CB6783E)

Details
Written by: Newton C. Braga

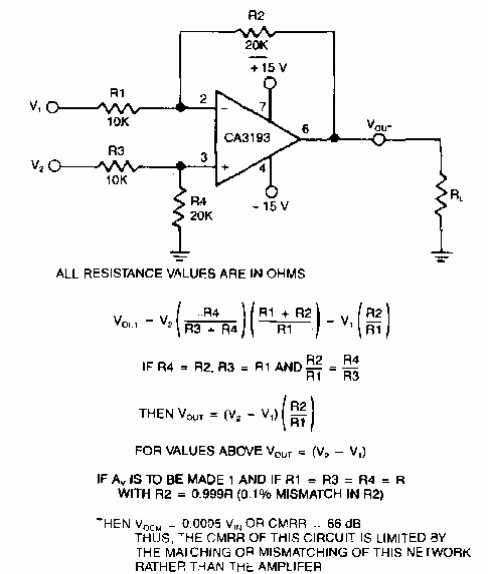

     This basic circuit was found in RCA / GE documentation from the 90s. In it we have the way to implement a differential amplifier with common operating or BiMOS.
