Zero crossing switch (CB6852E)

Details
Written by: Newton C. Braga

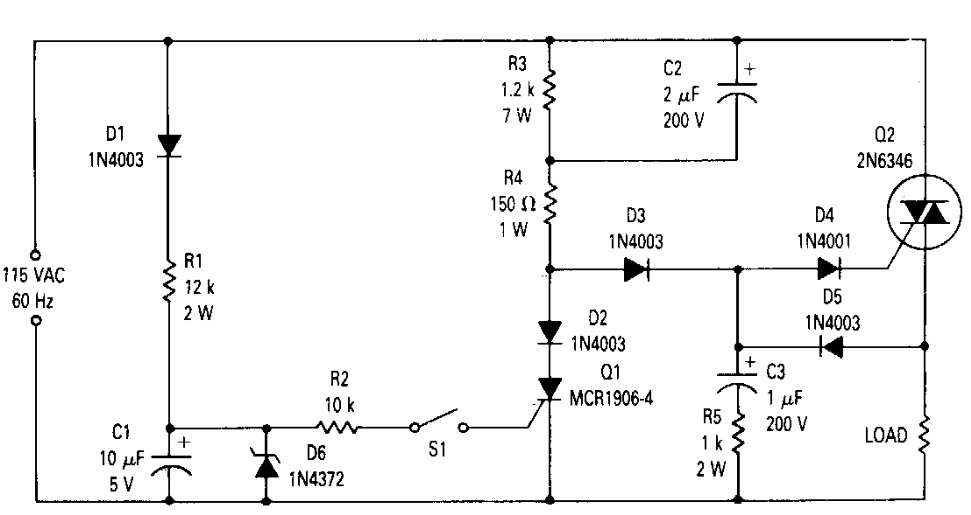

     Found in Motorola documentation from the 90s, this circuit makes use of a triac from that time. The circuit is for the 110 V mains but can be modified for other grid voltages.
