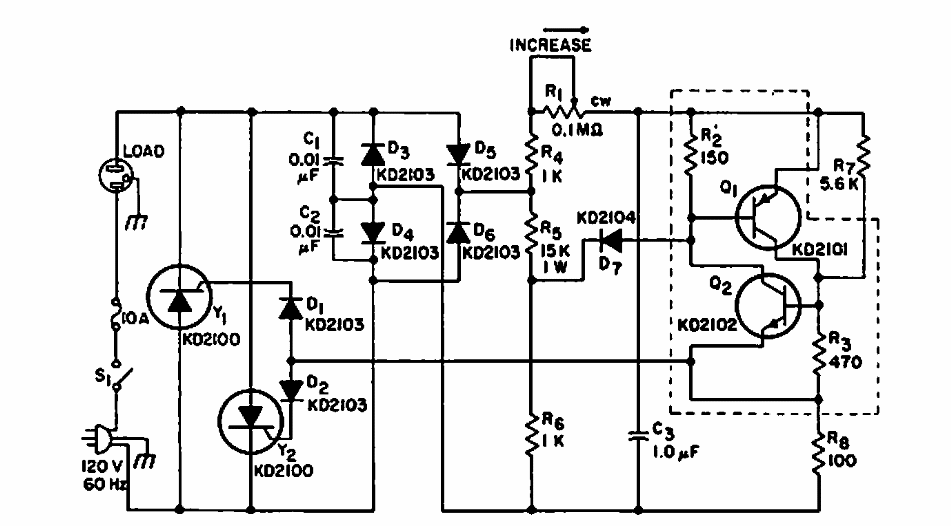

Full wave SCR dimmer (CB7201E)

Found in a 1967 RCA manual, this circuit uses components from the era that can be replaced by modern equivalents. The circuit is for resistive loads.
