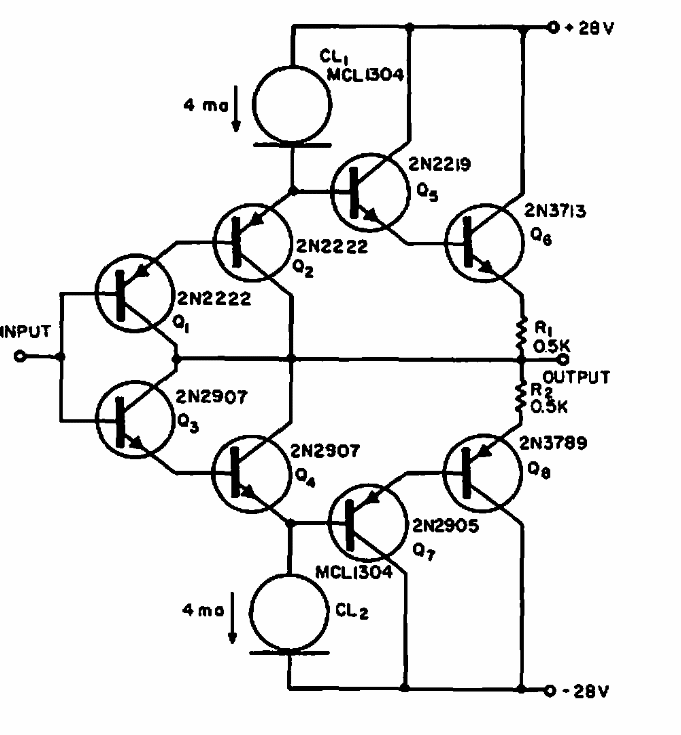

Unit Gain Balanced Amplifier (CB6120E)

Details
Written by: Newton C. Braga



    We found this circuit in a 1965 Electronic Design. Transistors are still common but admit equivalents for some of them. The circuit drains a current of only 4 mA.
