Instrumentation amplifier (CB7031E)

Details
Written by: Newton C. Braga

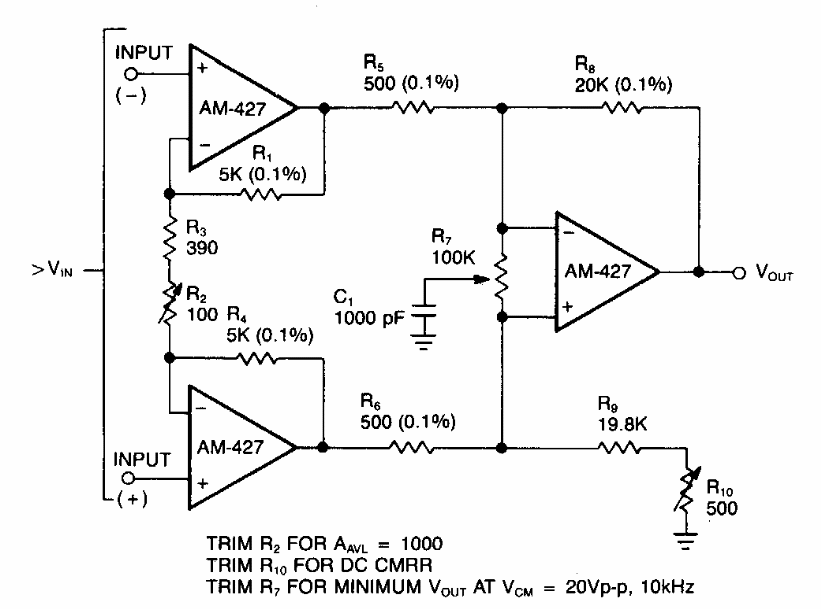

     Found in Datel's documentation from the 1980s, this circuit makes use of the company's operational amplifiers. The circuit can be implemented with any modern equivalent operational.
