Wien Bridge Oscillator (CB6405E)

Details
Written by: Newton C. Braga

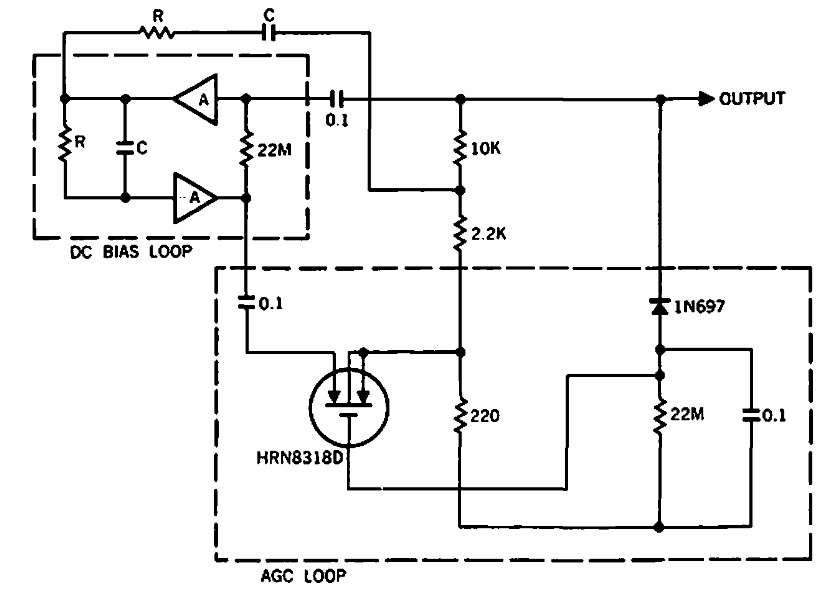

    This circuit is from a Hughes documentation from 1968. The components are of the time and the RC network determines the operating frequency of the circuit.
