Frequency divider with varicap (CB6826E)

Details
Written by: Newton C. Braga

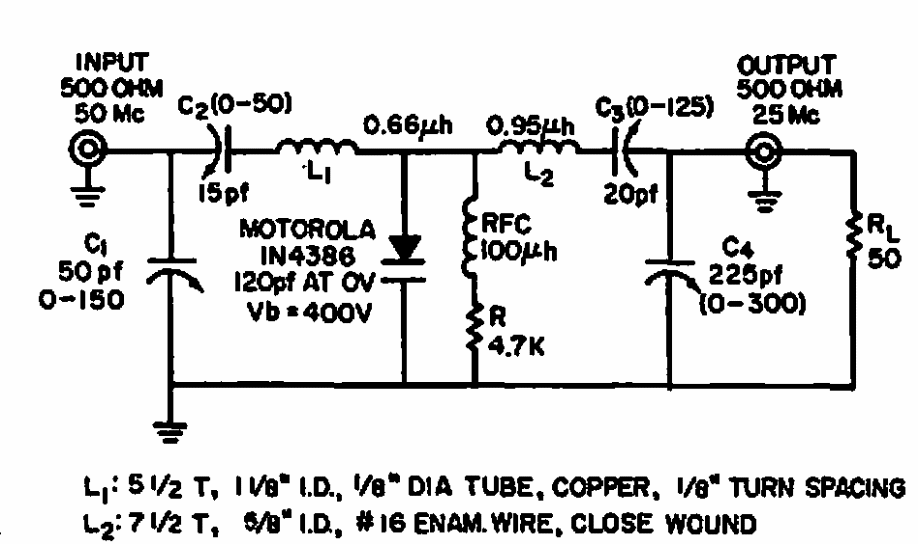

    Found in a 1965 Electronic Design, this circuit divides the frequency of a 50 MHz signal by 2. The circuit makes use of period components and the signal power can be between 7 and 125 W.
