Game clock generator (CB7003E)

Details
Written by: Newton C. Braga

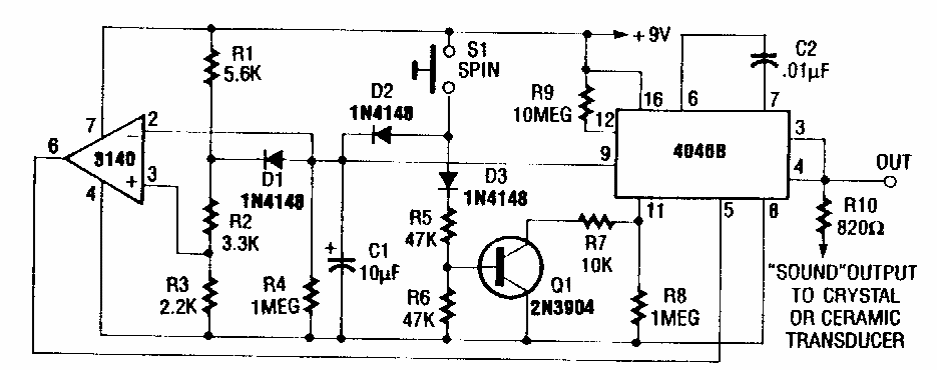

     This circuit found in Radio Electronics can be used in games to produce a random pulse train. The main integrated circuit is not a common component today. The circuit has a 15 second decreasing frequency cycle.
