Battery charger (CB7126E)

Details
Written by: Newton C. Braga

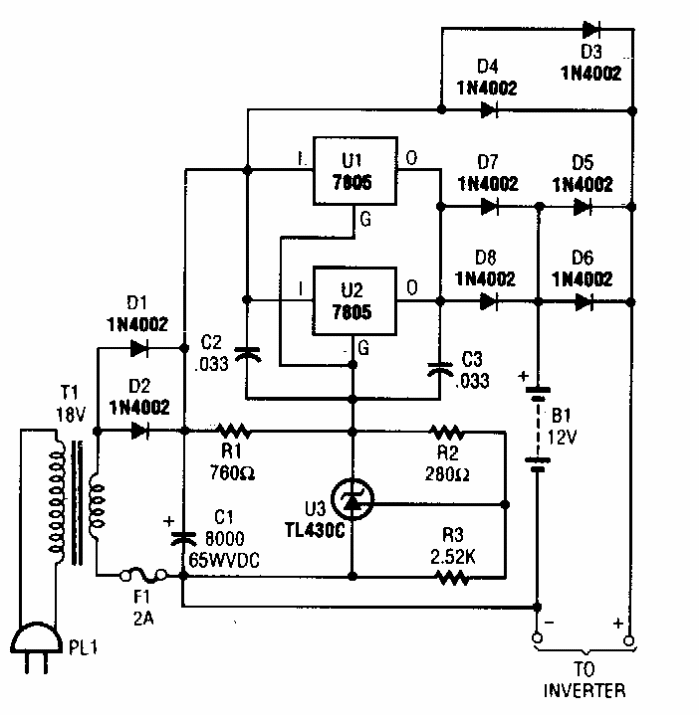

     This lead-acid battery charger was found in a Popular Electronics from the 90s. The circuit has a maximum current of 2 A, being suitable for powering inverters in emergency lighting systems.
