Amplification Stage (CB6178E)

Details
Written by: Newton C. Braga

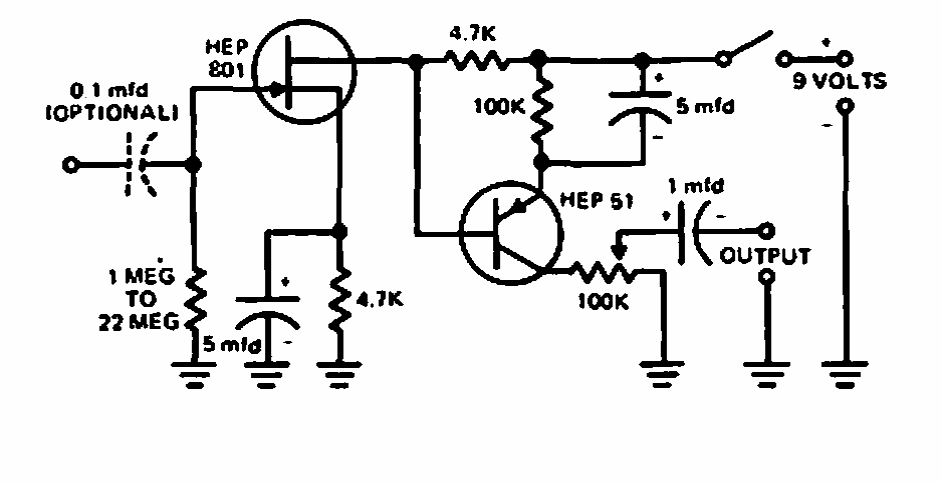

     This small signal amplifier circuit was found in Motorola's 1969 documentation. The FET and the transistor can be of any type and is battery powered since the consumption is very low.
