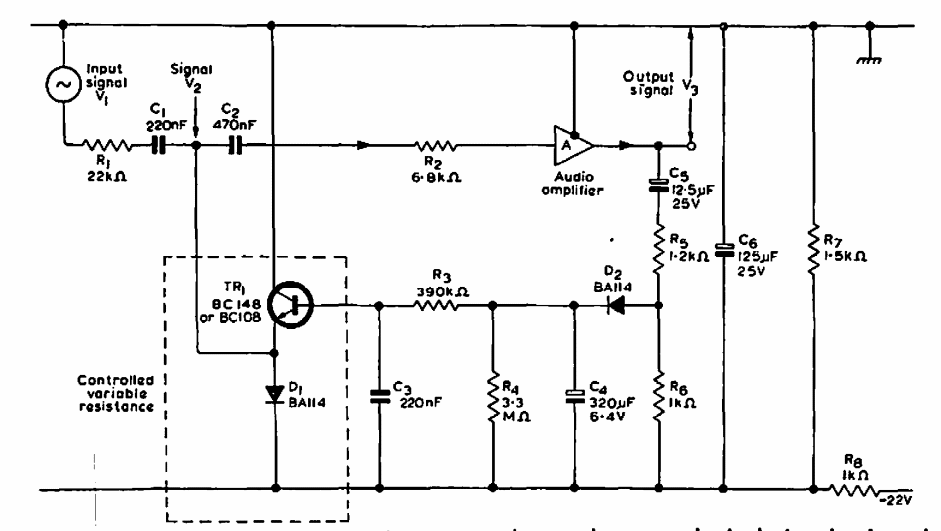

AGC for tape recorders (CB7337E)

Details
Written by: Newton C. Braga



     This circuit was found in a 1969 Mullard publication. The transistor may be the modern equivalent of BC548. Observe the relatively high supply voltage.
