Infrared Transmitter (CB6370E)

Details
Written by: Newton C. Braga

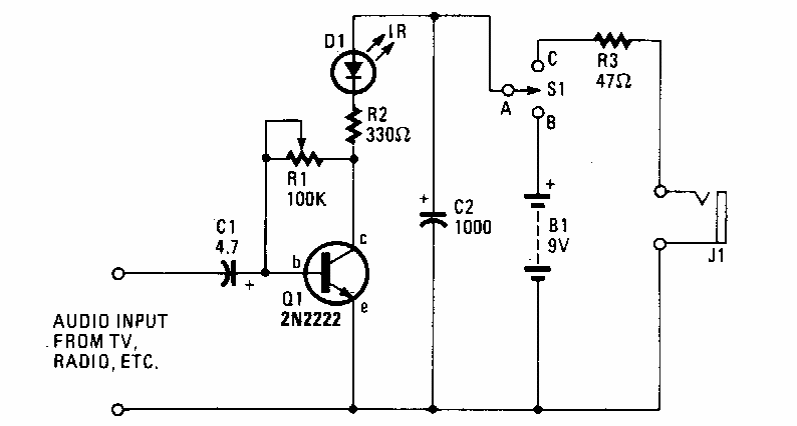

     This circuit was found in a Hands On Electronics with the suggested application an optical link for wireless TV headset or remote sound. The circuit is battery powered.




| Clique na imagem para ampliar |
