Two Transistor Amplifier Stage (CB971E)

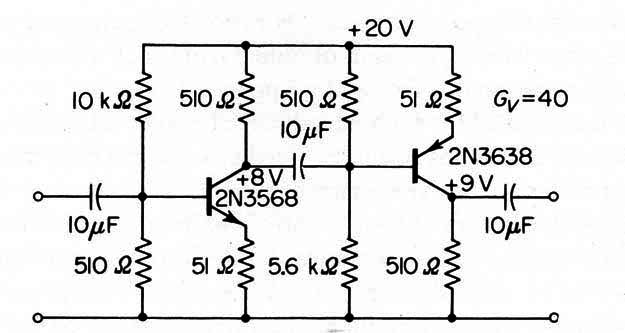

This two transistor audio amplifier stage was found in a publication of the year 1968. The transistor are germanium types, common that time, and the stages are RC coupled. The voltage gain is 40.
