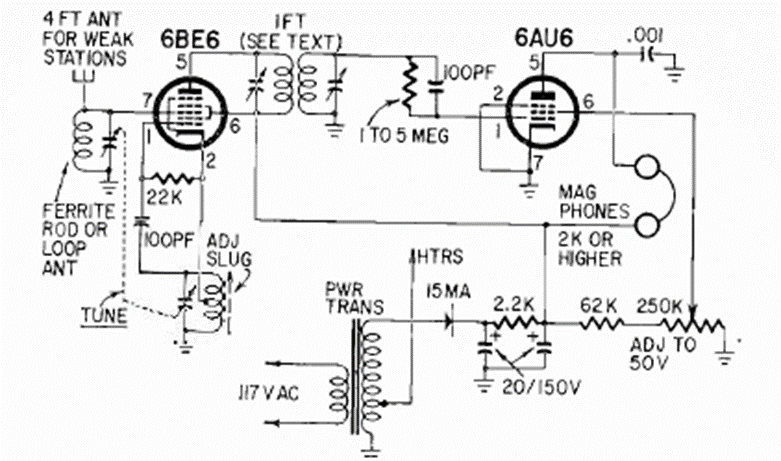

This simple circuit with experimental or didactic purposes was found in the Radio Electronics magazine of July 1964. Listening is to sources and the tuned band of medium waves. The font is included.
| Clique na imagem para ampliar |
Two-tube super heterodyne (T793E)
- Details
- Written by: Newton C. Braga
