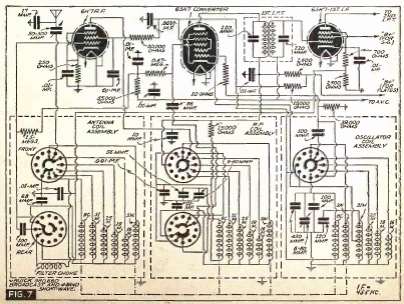

In the figure we have a converter, amplifier and IF step circuit of a multi-band radio. The selector switch selects coils for the different ranges, the circuit being very critical with the adjustments. Many communications receivers used this configuration with special switches of very low capacitance and resistance to have a flat frequency response in all bands.
