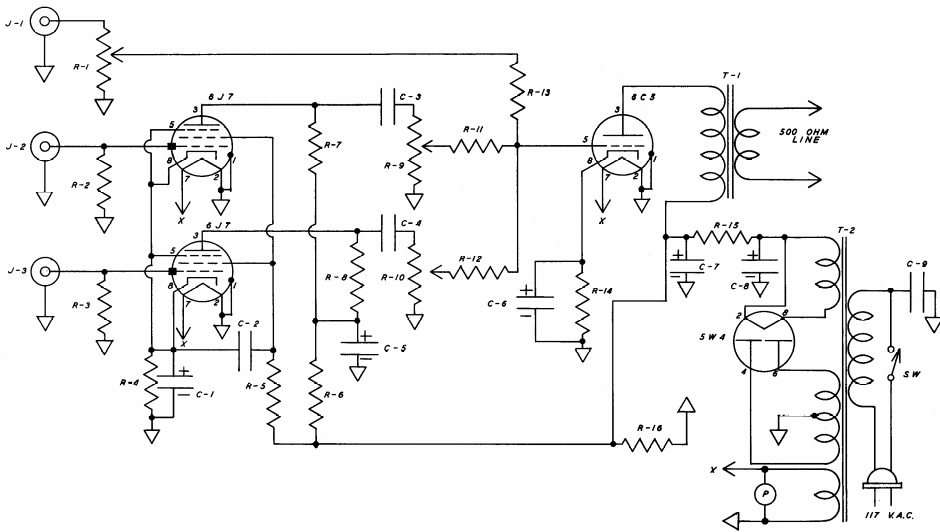

3-channel preamp (T484E)

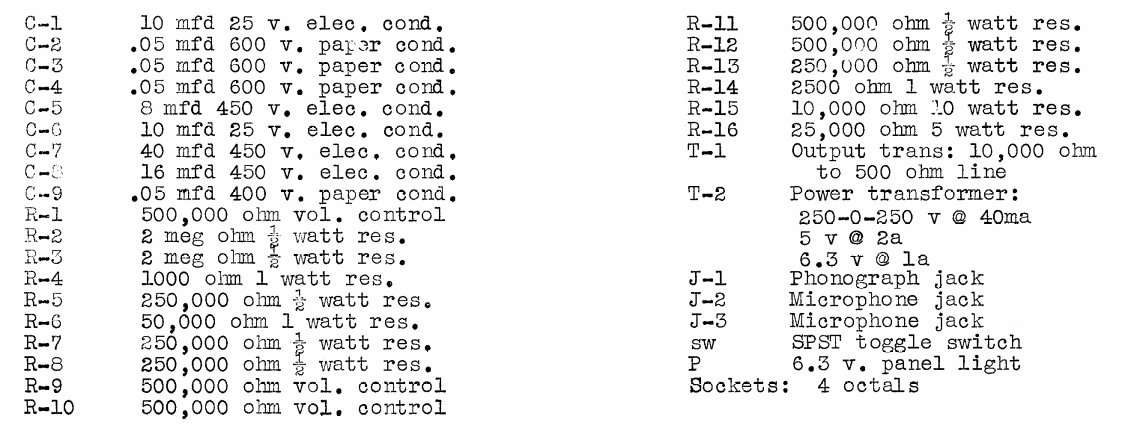

This 4-tube circuit was found in an American publication from 1947. It is intended for audio distribution lines using a transformer source.
